Debugging Parameters for TCP/IP
Original instructions
About us
Introduction
The debugging parameters for the TCP/IP services are grouped together in two windows:
the
IP Address
window
the
Communication test
window

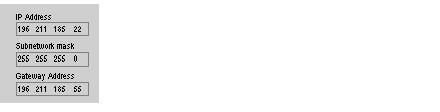

IP Address
The window is displayed as below:
It specifies the configuration data of the IP address:
IP Address
Subnetwork mask
Gateway Address
: address of the gateway

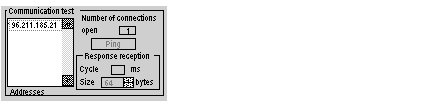

Communication Test
The window is displayed as below:
This window allows you to test IP communication towards another declared station in the remote devices grid.
