Unlike other networks, during the configuration phase of a logical Ethernet network it is necessary to choose the module family to be attached to the logical network in order to access the different available services.
There are three Premium PLC families:
-
TCP/IP 10 and ETHWAY for ETY 110 and 110 WS
-
TCP/IP 10/100 extended connection for TSX P57 6634/5634/4634
-
TCP/IP 10/100 standard connection for TSX ETY 4103/5103 and ETY PORT (TSX P57 1634/2634/3634)

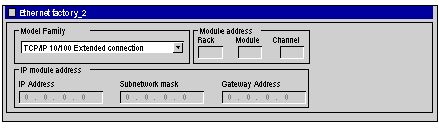

The figure below shows the family selection window:
