Introduction
In order to use the TSX ETY 4103/5103 module to communicate on Ethernet, it is necessary to set the Configuration Parameters Linked to the TCP/IP Service.
Access Messaging
Messaging is configured in the two windows accessible by the tabs: IP Configuration and Messaging.To access configuration parameters for TCP/IP services:
Step
Action
1
Access the module configuration screen.
2

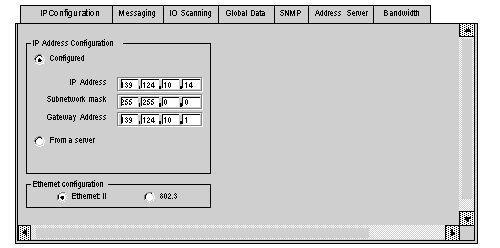

Select the IP Configuration tab:
3

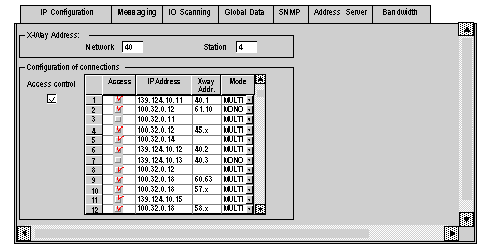

Select the Messaging tab:
Configure Messaging

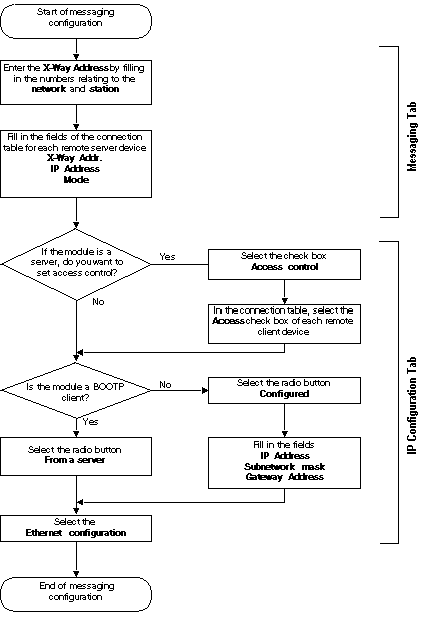

The following procedure gives the configuration principle.
