How to Access the CANopen Master Configuration Screen
(Original Document)
About us
At a Glance
This describes how to access the configuration screen of the master for a Modicon M340 PLC with a built-in CANopen link.
Procedure
To access the master, carry out the following actions:
Step
Action
1
From the project navigator, deploy the Configuration directory.
Result: the following screen appears:
2

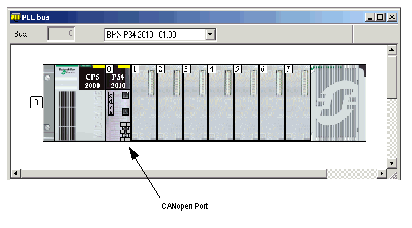

Double-click on the PLC Bus subdirectory.
Result: the following screen appears:
Double-click on the processor's CANopen port.
3

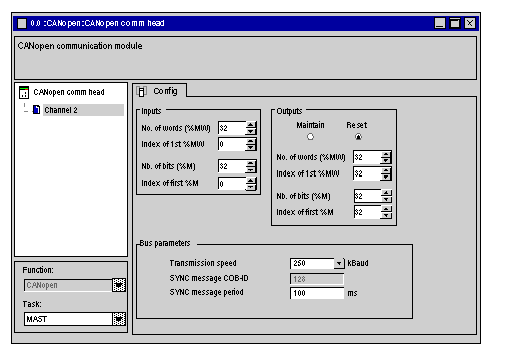

The master configuration screen appears:
