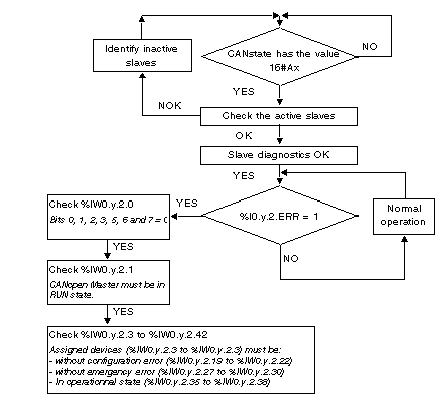

You can start by using the LEDs located on the forward face of the processor to search for detected errors on the CANopen bus. Next, you can use the procedure (described below) which details bus start up management and the checks to be carried out using the language objects provided by the PLC.

For the various states of %IW, refer to the T_COM_CO_BMX IODDT.
