The CANopen communication card TSX CPP 110 is used to implement a open architecture. This card is master of the bus and enables the connection of devices in compliance with the CANopen standard:
-
Implicit exchange of Process Data Objects using %MW words.
-
Explicit exchange of Service Data Objects via READ_VAR and WRITE_VAR function blocks.
-
Compatibility with standardized device profiles and communication on CANopen (2.0A and 2.0B).
NOTE: The TSX CPP 110 card authorizes a maximum configuration of 64 KB.
The TSX CPP 110 card is a type III PCMCIA card which is inserted into the PCMCIA communication slot on the processor.
Type III CANopen PCMCIA cards (TSX CPP 110) can be used in the PCMCIA slots of all PLCs that you can program using Control Expert software.

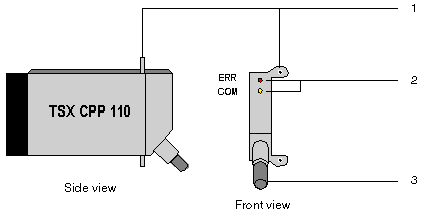

This module is made up of the following elements:
This table describes the elements in the previous figure.
|
Number
|
Description
|
|
1
|
Fixing brackets, on the top and bottom of the card, which are used to attach it to the processor.
|
|
2
|
|
|
3
|
Bus cable, this 50 cm cable is equipped at its end with a CANopen industrial TAP.
|
