How to Access the Configuration Screen
|
|
|
(Original Document)
|
|
Step
|
Action
|
|---|---|
|
1
|
Open the hardware configuration editor from within the application browser.
|
|
2
|
Double-click the PCMCIA card slot positioned at the bottom of the processor.
Result:the following list appears.
 |
|
3
|

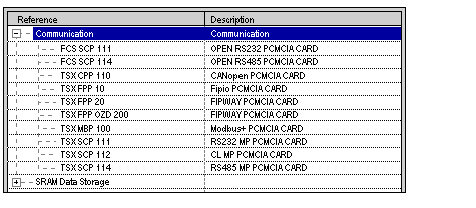

Open up the Communication line by clicking this line + to obtain a list of communication cards available for this slot.
Result: the following list appears.
 |
|
4
|
Select the TSX CPP 110 card and then confirm with OK.
Result: the software displays the new X-Bus configuration editor, and you can now access the PCMCIA card configuration screen.
|
|
5
|

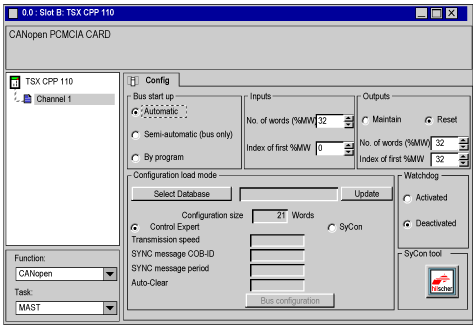

Double-click the PCMCIA card slot to obtain the PCMCIA card configuration window.
Result:
 |
