Implementation Method
(Original Document)
About us
Overview

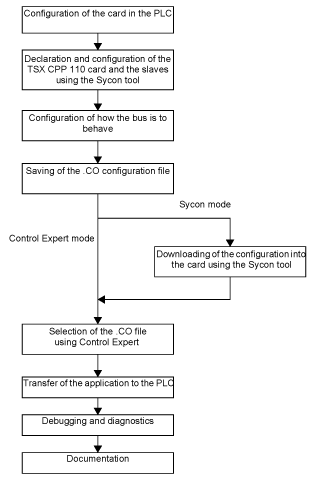

The following flowchart shows the implementation methodology for a TSX CPP 110 card.
Recommenda-tions
When the configuration of the CANopen bus is too large to allow the change to Control Expert mode, you should carry out the following checks:
See if you can remain in Control Expert mode using a
more powerful Premium processor
.
If it is not possible to select a more powerful processor, change to Sycon mode.
