Example of the PWM1 block
Original instructions
About us
Jump response
In the examples, the signal sequences on the outputs OUT_POS and OUT_NEG are shown for various IN input signal values.
The following parameter specifications apply to the jump response display:
Parameter
Specification
t_period
4 s
t_min
0.5 s
in_max
10

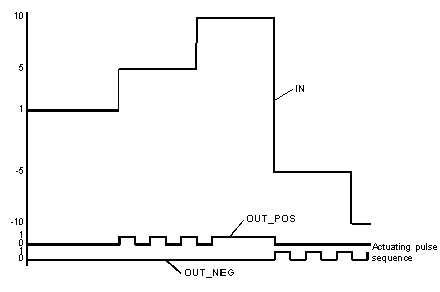

Step response timing diagram
IN
Analog signal
It can be seen that pulses are no longer output for very small IN input signals. This is directly attributable to the effect of time t_min. A continuous pulse is output for large IN (IN = in_max) signals.
