Dimensions of X80 BMXETM0200(H) Expert Input Frequency Module
|
|
|
Original instructions
|

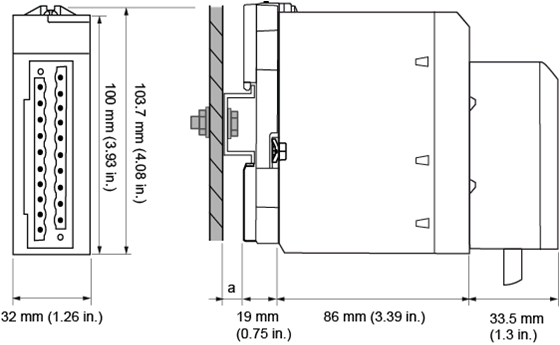

aDIN-rail depth: the value depends on the DIN-rail type used in your platform.
|
Module reference
|
Module dimensions
|
Installation depth(1)
|
||
|---|---|---|---|---|
|
Width
|
Height
|
Depth
|
||
|
BMXETM0200(H)
|
32 mm (1.26 in.)
|
103.7 mm (4.08 in.)
|
86 mm (3.39 in.)
|
119.5 mm (4.69 in.)(1)
|
(1)DIN-rail depth (a) is not included. |
||||
