Display of slaves on the AS-i bus

General

This mode is displayed by default when the module is switched on, and is used to display:

Slave present (LED permanently on).
Slave not projected and not detected (LED off).
Slave projected and not detected or not projected and detected or projected, detected but not activated (LED flashing).

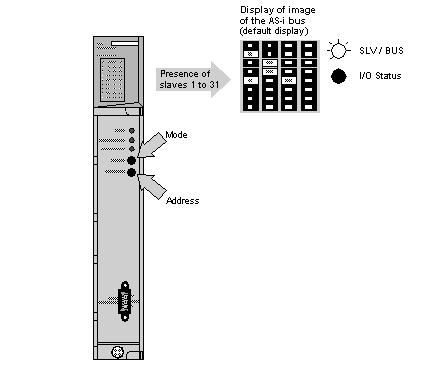

Illustration:

The image of the AS-i network is displayed on the entire display panel. Each LED represents an AS-i bus slave address.
