The 140 EIA 921 00 module is compatible with local, remote and offset Quantum I/O racks.
The mounting and removal procedure is identical to the mounting and removal procedure for other modules.

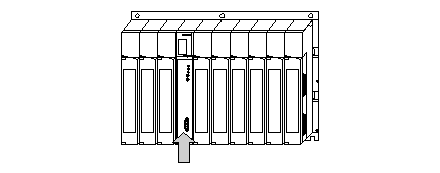

Example of mounting a 140 EIA 921 00 module:
NOTE: The module can be mounted and removed with both PLC and AS-i bus power switched on.
Number of AS-i modules per PLC
The Quantum I/O AS-i master module is designed to enable several master modules to be used in the same control system. Each master module can control up to 31 sensors/actuators. These sensors/actuators can be located in the local processor, in an RIO device or in a DIO (input/output) station
|
Type of I/O station
|
Maximum number of AS-i modules
|
|
Local
|
no limit
|
|
Remote per I/O station
|
4
|
|
Offset per I/O station
|
2
|
