How to modify the value of an analog channel
(Original Document)
About us
At a Glance
This function allows the values of channels linked to an AS-i V2 analog slave to be modified.
Procedure
The following table shows the procedure for modifying the value of an AS-i V2 slave's analog channel.
Step
Action
1
Access the AS-i V2 module’s debug screen.
2
Select an analog slave in the AS configuration-V2 interfacezone.
3
Select the channel whose value you wish to modify from the Slave zone.

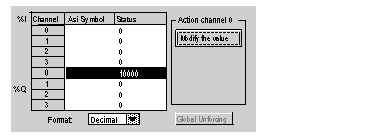

Result: the following window appears :
4
Click on the Change Value button.

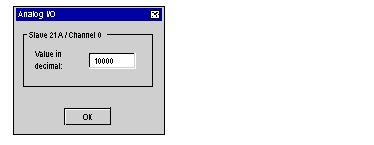

Result: the following window appears :
5
Enter the value in decimals and click on OK.
Note: the value is always entered as decimal, but it may be displayed in a different format using the Format drop-down list, located at the bottom of the Slave zone.
