How to access the SET and RESET commands of the AS-i V2 digital channels
(Original Document)
About us
At a Glance
These commands allow values 0 (RESET) or 1 (SET) to be assigned to the channels of an AS-i V2 digital slave.
The status of the output affected by one of these commands is temporary and can be modified at any time by the project.
Procedure
The table below shows the procedure for assigning a value of 0 or 1 to the selected AS-i V2 slave’s channels.
Step
Action
1
Access the AS-i V2 module’s debugging screen.
2
Select a slave in the AS-interface V2 Configuration zone.
3
Select the channel to be modified in the Slave zone table.

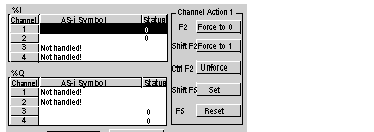

Result: The channel can be modified using the buttons situated in the Channel action field.
4
Select the required function (buttonsSet or Reset) in the field Channel action.
