Description of an AS-i V2 module's debug screen

At a Glance

The debug screen dynamically displays the status of the AS-i V2 module and the devices which are connected to the bus.

It also allows access to the adjustment of the slave parameters and to the channel commands (forcing the input or output value, Set/Reset of an output, ).

NOTE: if in your user program you use the function READ_STS () to read information relating to the AS-i V2 module, it is important not to carry out this function more than every 5s otherwise the debug screen will not display correctly.

Illustration

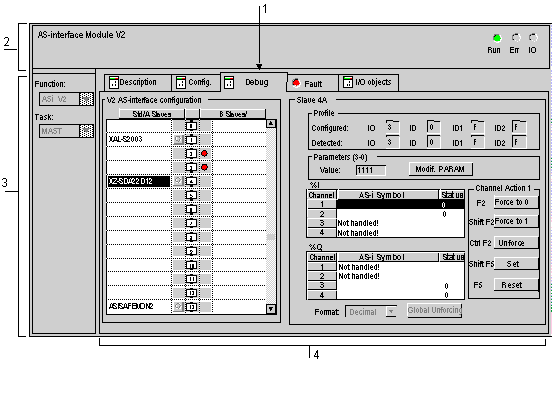

The figure below shows an example of a debug screen.

Description

The following table shows the different elements of the debug screen and their functions.

Address	Item	Function
1	Tabs	The front tab indicates the mode in progress (Debug for this example). Each mode can be selected with the corresponding tab. Possible modes are: Debug only accessible only in online mode. Diagnostics (Default), accessible only in Online mode, Configuration. The tab I/O Objects is used to presymbolize the input/output objects.
2	modulezone	Specify the abbreviated title of the module. In the same field there are 3 LEDs which provide information on the operating mode of the module RUN indicates the operating mode of the module, ERR signals an internal fault in the module, I/O signals an external fault in the module or an application fault.
3	General parameterszone	Specify the parameterization of the task MAST or FAST configured for the AS-i communication channel.
4	AS-i configuration and slavearea	Displays the slave devices connected to the bus. Displays the status of the slave’s channels and gives access to the debug functions.
