How to access the description of an AS-i V2 slave
(Original Document)
About us
At a Glance
The Control Expert software allows access to all the information relating to an AS-i V2 device such as:
Definition of a profile
A profile is defined by:
NOTE: profile description for Private Family products is not accessible.

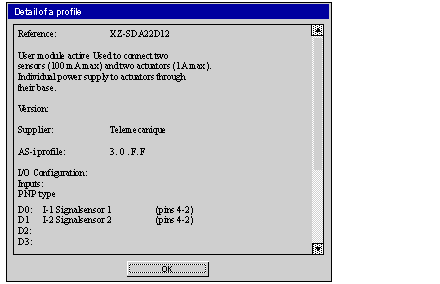

Details of a profile
The Details function allows access, for a given slave, to all the information presented in the catalog file.
Procedure for accessing information on a profile
The following table shows the procedure for displaying the characteristics of a slave device.
Step
Action
1
Access to the hardware configuration screen of the AS-i V2 module.
2
Double click on the required slave.
Result: The windowAssociate a profile displays and highlights the device in question
3
Select the profile family and the reference for the desired slave.
4
Click on the button:
  • View to access definition information,
  • Details to access all the information.
