How to modify the address of an AS-i device

At a Glance

This command allows the movement of the selected AS-i device to another available address. This address modification can only be done online and not in configuration: thus physical configuration and software configuration are different.

NOTE: This function is only operational for the TSX SAY 100 modules, in a version higher than 02.

Procedure

The following table shows the procedure for modifying the address of an AS-i slave device.

Step	Action
1	Access the debug screen of the TSX SAY 100 module.

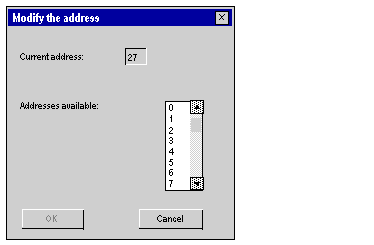

2	Select a slave in the zone AS-interface configuration then execute the command Edit → Modify the AS-i slave address. Result: The selection screen for a new address is displayed.
3	Select the required address in the list of Available addresses (use the scroll bar if necessary).
4	Confirm the selection with OK.
