How to Declare a Slave Device on the AS-i Bus
(Original Document)
About us
At a Glance
Control Expert software offers a catalog of Schneider products which groups together all of the AS-i V2 slaves that are available. This catalog is currently structured according to the following families :
Selecting Private Family enables you to manage a specific AS-i device catalogue file via its programming terminal.
NOTE: A project using AS-i products from the Private Family catalog is always linked to the usage of the same Private Family catalog of the workstation on which the catalog was created.
Procedure
This operation is used to declare a slave device on the AS-i bus.
Step
Action
1
Open the AS-i module to be configured.
2
Access the configuration screen by clicking the Configuration tab.
3
In the AS-interface configuration area, double click in the cell corresponding to the new slave’s host slot number (1 to 31), or select the cell then click Edit → Add an AS-i Slave.

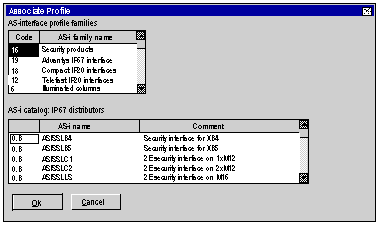

Result: The screen Associate Profile appears.
4

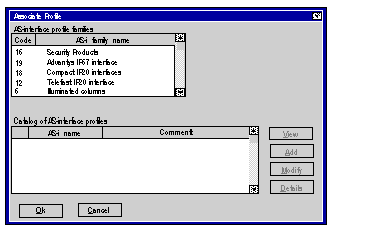

In the Profile Families area, select the required family.
Result: The Profile Catalog linked to the selected family appears.
Note: It is normal that the following products or families have been removed since they are no longer manufactured, nor marketed:
  • Signaling and control (code 7)
  • Inductive proximity detector (code 11)
  • Modular IP67 M12 interface (code 3)
  • IP67 M12 interface (code 10)
  • IP67 M8 interface (code 15)
  • Keyboard (code 5)
  • Photoelectric detector (code 9)
  • The XVA-S102 products of luminous columns (code 6)
The products are still listed, but access via families only has been removed. It is no longer possible to add the above products, but if the application was using them, then these products will appear on the configuration screen (no blanks) and everything will operate normally.
5
In the AS-Interface Profile Catalog select the required device.
6
Confirm the selection with OK.
Result: The slave device is defined in its slot, the reference of the connected device appears opposite the number of the slave.
7
To connect other slave devices to the AS-i bus, repeat the procedure from step 3.
