Specific Display Panels on the TSX SAY 1000 Module
(Original Document)
About us
General
2 LEDs: PWR OK and FAULT give specific information on the TSX SAY 1000 module.

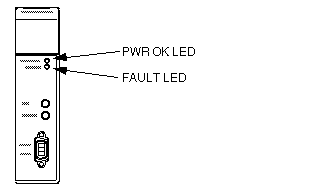

View of the 2 LEDs:
PWR OK LED (green):
LED state
Meaning
LED on
Power Supply consistent
LED off
Power Supply inconsistent
FAULT LED (Red)
LED state
Meaning
LED on
AS-i bus faults
LED off
No faults
