The TSX SUP A05 power supply block can be mounted on a panel, an AM1-PA mounting plate or a DIN rail.
Drilling diagram (dimensions in millimeters):
(1) The diameter of the screw holes must be suitable for M6 screws.
Mounting on a Telequick AM1-PA Perforated Mounting Plate

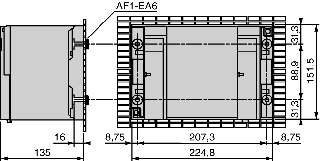

Fix the power supply block in place using M6x25 screws + washers and AF1-EA6 clip nuts (dimensions in millimeters):
Mounting on a 35mm Wide DIN Mounting Rail

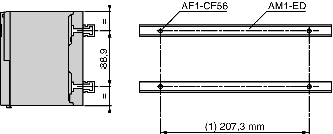

Fix the power supply block in place using 4 M6x25 screws and AF1-CF56 1/4 turn sliding nuts (dimensions in millimeters):
