Physical Description
Original instructions
About us
General
The BMX EIA 0100 module comes as a standard format module.
Illustrations:
Reference Table

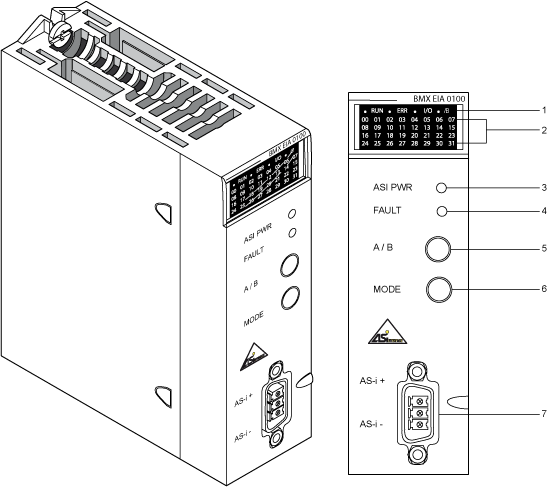

The following table describes the front panel diagram above:
Item
Description
1
A display panel consisting of 4 LEDs for displaying the operating modes of the module:
  • RUN LED (green): When lit, it indicates normal functioning of the module.
  • ERR LED (red): When lit, it indicates a detected module error.
  • /B LED (green): When not lit, it displays the bank A slaves; when lit, displays the bank B slaves.
  • I/O LED (red): When lit, it indicates a detected error in the AS-Interface application (bus or slaves).
2
A display panel consisting of 32 LEDs (0 to 31) that enables AS-Interface bus diagnostics and displays the state of each slave connected to the bus.
3
ASI PWR LED (green): When lit, it indicates that power supply is compliant.
4
FAULT LED (red): when lit, this indicates detected errors associated with the AS-Interface bus.
5
A/B push-button: It is used to change the bank displayed in the display panel. It allows the 31 LEDs to indicate the state of the bus devices on either bank A or B.
6
MODE push-button: A prolonged press on this button causes the slaves to be reset and the module to switch to OFFLINE mode. This then allows the slaves to be programmed via an infra-red interface. The new hand-held diagnostics tool can also be connected to the bus. To return to the normal mode, press the button again for a prolonged period.
7
CANNON SUB-D connector for connection to AS-Interface bus.
NOTE: For more information about Items 1 to 4, see Front Panel Diagnostic LEDs
