The command word is the first output register mapped to the module.
The command word format for the ESI module is as follows:
-
Bits 0 ... 3 - contain the data count (in words), range is 0 ... 9
-
Bits 4 ... 7 - contain the port number, range is 1 ... 2
-
Bits 8 ... 15 - contain the command, range is 0 ... A

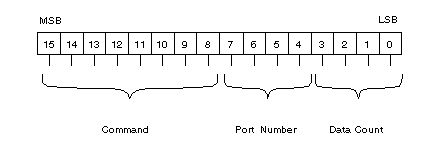

Structure of the command word:
NOTE: The bit order is based on the IEC standard, where bit 15 is the most significant bit.
