Use of the TELEFAST Wiring Accessories
Original instructions
About us
Introduction
The TELEFAST pre-wired system consists of connecting cables and interface sub-bases as shown below:
1
BMX AMO 0802 module
2
BMXFTA••2 connecting cable
3
ABE-7CPA02 interface sub-base
4
Shield bar
5
Clamp
BMX FTA ••2 Connecting Cables
The BMX FTA ••2 cables are pre-assembled cord set, made up of:

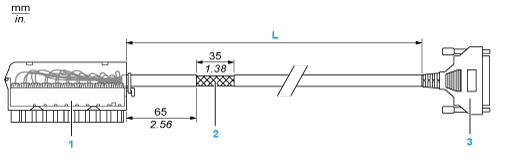

The figure below shows the BMX FTA ••2 cables:
1
BMX FTB 2020 Terminal block
2
Cable shielding
3
25-pin Sub-D connector
L
Length according to the part number.
The cable comes in 3 different lengths:
The following table gives the characteristics of the BMX FTA ••2 cables:
Characteristic
Value
Cable
Sheath material
PVC
LSZH status
No
Environmental
Operating temperature
-25...70 °C (-13...158 °F)
Connecting Actuators
Actuators may be connected to the ABE-7CPA02 accessory as shown in the illustration.
The following table shows the distribution of analog channels on TELEFAST terminal blocks with the reference ABE-7CPA02:
TELEFAST terminal block number
25 pin Sub-D connector pin number
BMXAMO0802 pin out
Signal type
TELEFAST terminal block number
25 pin Sub-D connector pin number
BMXAMO0802 pin out
Signal type
1
/
Ground
Supp 1
/
Ground
2
/
STD (1)
Supp 2
/
Ground
3
/
STD (1)
Supp 3
/
Ground
4
/
STD (2)
Supp 4
/
Ground
100
1
3
I0
200
14
4
COM0
101
2
NC
201
/
Ground
102
15
5
I1
202
3
6
COM1
103
16
NC
203
/
Ground
104
4
7
I2
204
17
8
COM2
105
5
NC
205
/
Ground
106
18
9
I3
206
6
10
COM3
107
19
NC
207
/
Ground
108
7
11
I4
208
20
12
COM4
109
8
NC
209
/
Ground
110
21
13
I5
210
9
14
COM5
111
22
NC
211
/
Ground
112
10
15
I6
212
23
16
COM6
113
11
NC
213
/
Ground
114
24
17
I7
214
12
18
COM7
115
25
NC
215
/
Ground
Ix: + pole voltage input for channel x
COMx: - pole voltage or current input for channel x
NC: Not Connected
NOTE: The strap must be removed from the ABE-7CPA02 terminal, otherwise the signal ground of channels will be connected with earth.
For the ground connection use the additional terminal block ABE-7BV20.
