Introduction
The actuators are connected using the 20-pin terminal block.
Illustration

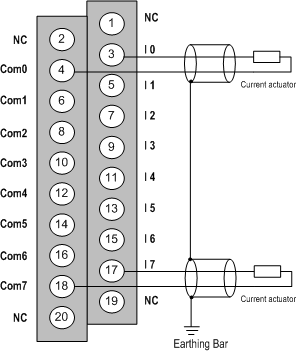

The current loop is self-powered by the output and does not request any external supply. The terminal block connection and the actuators wiring are as follows:
Ix
+ pole input for channel x.
COMx
- pole input for channel x, COMx are connected together internally.
Wiring Accessories
Two cords BMX FTA 152/302 are provided in two lengths (1.5m (4.92 ft), 3m (9.84 ft)) to connect the module to a Telefast interface ABE7CPA02.
