Wiring Diagram
Original instructions
About us
Introduction
Module BMX AMI 0800 is connected using the 28-pin terminal block.
Illustration

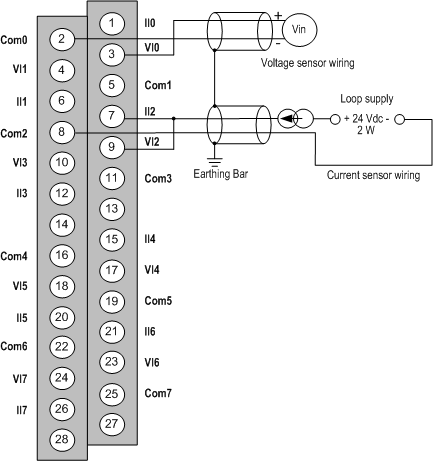

The terminal block connection and the sensor wiring are as follows:
VIx
+ pole input for channel x.
COMx
- pole input for channel x, COMx are connected together internally.
IIx
current reading resistor + input.
Channel 0
voltage sensor.
Channel 1
2-wire current sensor.
Wiring Accessories
For rapid connection to operative parts, the module can be connected to a TELEFAST pre-wired system.
