Modification of Output Channels Adjustment Values
Original instructions
About us
At a Glance
This function is used to modify the forcing, fallback and alignment values for one or several output channels of an analog module.
The available commands are:
Procedure
The table below summarizes the procedure for modifying the values to be applied at the output channels:
Step
Action for a channel
1
Access the debug screen.
2
Select the channel in the Display zone and double-click in the corresponding box.

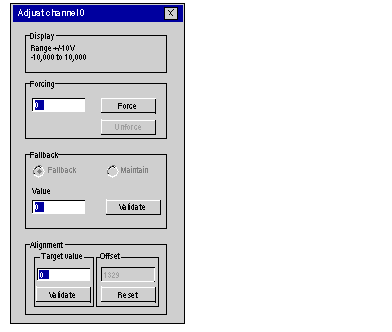

Result: The Adjust channel dialog box appears.
3
Click on the text field in the Forcing field of the Adjust channel dialog box. Enter the forcing value. Send the forcing order by clicking on the Forcing button.
4
Click on the box in the Value field of the Fallback dialog box and enter the new fallback value.
Confirm this new value by clicking OK.
5
Click on the text field in the Alignment field of the Adjust channel dialog box and define the target value. Confirm this selection by clicking OK.
6
Close the Adjust channel dialog box.
