Selecting the Cold Junction Compensation
Original instructions
About us
At a Glance
This function is available on the BMX ART 0414/814 analog input modules. It is carried out either by TELEFAST or by a Pt100 probe. An internal compensation by TELEFAST is proposed by default.
BMX ART 0414/0814 Module
The procedure for modifying the cold junction compensation of the BMX ART 0414/814 modules is as follows.
Step
Action
1

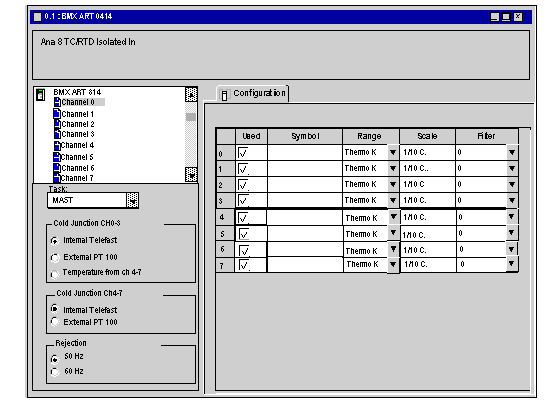

Access the hardware configuration screen for the appropriate module.
2
Check the Internal by TELEFAST, the External by Pt100 or the Temperature from Ch4-7 bloc box in the Cold Junction Channel 0-3 field.
3
Validate the change with Edit → Validate.
