Introduction
Module BMX AMI 0410 is connected using the 20-point terminal block.
Illustration

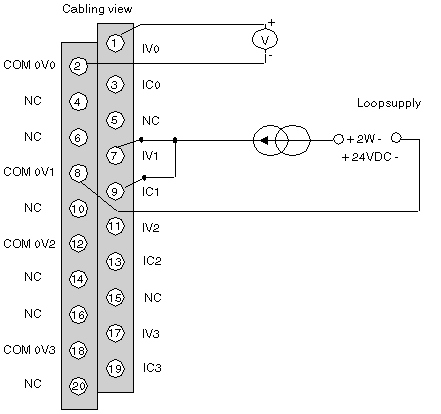

The terminal block connection and the sensor wiring are as follows.
IVx
+ pole input for channel x
COM 0Vx
- pole input for channel x
ICx
current reading resistor + input
Channel 0
voltage sensor
Channel 1
2-wire current sensor
