At a Glance
An animation table is used to monitor the values of variables, and modify and/or force these values. Only those variables declared in Variables & FB instances can be added to the animation table.
NOTE: For more information, refer to Animation Tables.
Procedure for Creating an Animation Table
The table below shows the procedure for creating an animation table.
Step
Action
1
In the Project browser, right click on Animation tables.
The edit window opens.
2
Click on first cell in the Name column, then on the button, and add the variables you require.
Animation Table Created for the Application

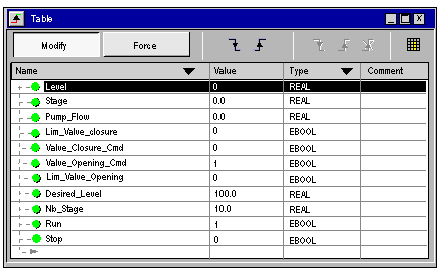

The following screen shows the animation table used by the application:
NOTE: The animation table is dynamic only in online mode (display of variable values).
