Modifying the Channel Filter Value

At a Glance

This function is used to modify the filter value of one or more channels of an analog module.

The available commands are:

Procedure

The table below gives the procedure for changing a filter value.

Step	Action for a channel
1	Access the debug screen.
2	Select the channel to be modified in the Display zone and double-click in the corresponding box in the Filter column. Results: The Adjust channel dialog box appears.

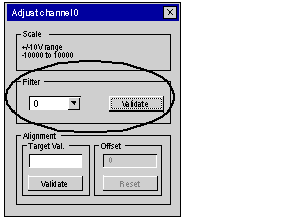

3	Click on the little arrow in the box in the Filtering field of the Adjust channel dialog box, and define the new selected filter value in the drop-down menu.
4	Confirm this selection by clicking OK.
5	Close the Adjust channel dialog box. Results: The new filter value then appears in the box corresponding to the selected channel in the Filter column of the Display area.
