TELEFAST 2 Pin Assignment for the TSX AEY 1600 Module
(Original Document)
About us
At a Glance

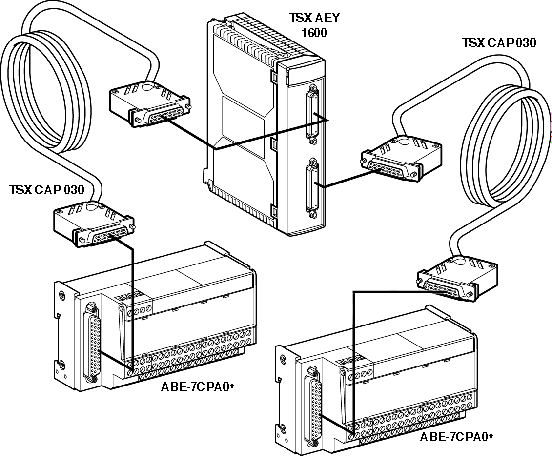

The TSX AEY 1600 analog module is connected to a TELEFAST 2 accessory through the TSX CAP 030 which guarantees continuous shielding. There are several types of connection base:
ABE-7CPA02
The distribution of analog channels on TELEFAST 2 terminal blocks with the reference ABE-7CPA02 is as follows:
TELEFAST 2 terminal block number
25 pin SubD connector pin number
Signal type
TELEFAST 2 terminal block number
25 pin SubD connector pin number
Signal type
1
/
Ground
Supp 1
/
Ground
2
/
STD (1)
Supp 2
/
Ground
3
/
STD (1)
Supp 3
/
Ground
4
/
STD (2)
Supp 4
/
Ground
100
1
+IV0 or +IV8
200
14
COM0 or COM8
101
2
+IC0 or +IC8
201
/
Ground
102
15
+IV1 or +IV9
202
3
COM1 or COM9
103
16
+IC1 or +IC9
203
/
Ground
104
4
+IV2 or +IV10
204
17
COM2 or COM10
105
5
+IC2 or +IC10
205
/
Ground
106
18
+IV3 or +IV11
206
6
COM3 or COM11
107
19
+IC3 or +IC11
207
/
Ground
108
7
+IV4 or +IV12
208
20
COM4 or COM12
109
8
+IC4 or +IC12
209
/
Ground
110
21
+IV5 or +IV13
210
9
COM5 or COM13
111
22
+IC5 or +IC13
211
/
Ground
112
10
+IV6 or +IV14
212
23
COM6 or COM14
113
11
+IC6 or +IC14
213
/
Ground
114
24
+IV7 or +IV15
214
12
COM7 or COM15
115
25
+IC7 or +IC15
215
/
Ground
Legend
+IVx
+ pole voltage input for channel x
+ICx
+ pole current input for channel x
COMx
- pole voltage or current input for channel x
NOTE: Removal of the connector is detected by a strap linking terminal blocks STD (1) and STD (2).
NOTE: For the ground connection use the additional terminal block ABE-7BV20.
ABE-7CPA03
The distribution of analog channels on TELEFAST 2 terminal blocks with the reference ABE-7CPA03 is as follows:
TELEFAST 2 terminal block number
25 pin SubD connector pin number
Signal type
TELEFAST 2 terminal block number
25 pin SubD connector pin number
Signal type
1
/
0 V
Supp 1
/
24 V (sensor supply)
2
/
0 V
Supp 2
/
24 V (sensor supply)
3
/
0 V
Supp 3
/
0 V (sensor supply)
4
/
0 V
Supp 4
/
0 V (sensor supply)
100
/
IS1 or IS9
200
/
IS0 or IS8
101
15
+IV1 or +IV9
201
1
+IV0 or +IV8
102
16
+IC1 or +IC9
202
2
+IC0 or +IC8
103
/
Ground
203
14/3
COM0 / COM1 or COM8 / COM9
104
/
IS3 or IS11
204
/
IS2 or IS10
105
18
+IV3 or +IV11
205
4
+IV2 or +IV10
106
19
+IC3 or +IC11
206
5
+IC2 or +IC10
107
/
Ground
207
17/6
COM2 / COM3 or COM10 / COM11
108
/
IS5 or IS13
208
/
IS4 or IS12
109
21
+IV5 or +IV13
209
7
+IV4 or +IV12
110
22
+IC5 or +IC13
210
8
+IC4 or +IV12
111
/
Ground
211
20/9
COM4 / COM5 or COM12 / COM13
112
/
IS7 or IS15
212
/
IS6 or IS14
113
24
+IV7 or +IC15
213
10
+IV6 or +IV14
114
25
+IC7 or +IC15
214
11
+IC6 or +IC14
115
/
Ground
215
23/12
COM6 / COM7 or COM14 / COM15
Legend
ISx
24 V channel power supply
+IVx
+ pole voltage input for channel x
+ICx
+ pole current input for channel x
COMx
- pole voltage or current input for channel x
NOTE: For the ground connection use the additional terminal block ABE-7BV10.
