Pin Assignment for the TSX AEY 1600 Connector
(Original Document)
About us
At a Glance
The TSX AEY 1600 input module consists of two 25-pin Sub-D connectors.
Connector Pins

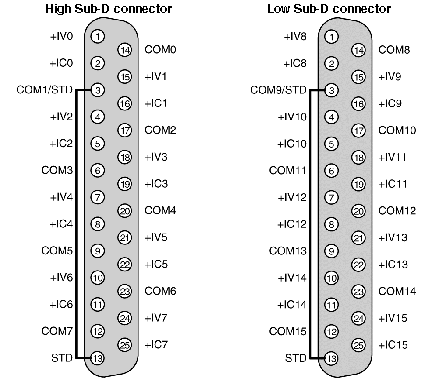

The connector pins are shown below:
+IVx
+ Pole voltage input of channel x
+ICx
+ Pole current input of channel x
COMx
- Pole current or voltage input of channel x
STD
The "strap" between pins 3 and 13 detects the unplugging of the connector.
NOTE: The COMx pins are linked internally in the module.
