The TSX AEY 1614 module is a 16 thermocouple input industrial measurement device.
This module offers the following range for each of its inputs according to the selection made at configuration :
-
thermocouple B, E, J, K, L, N, R, S, T or U,
-
voltage +/-80 mV.

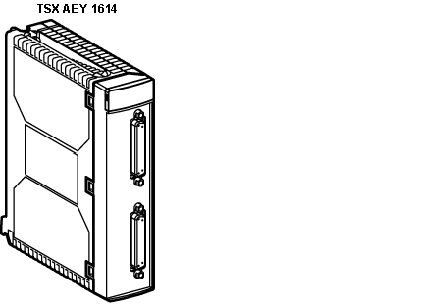

The following diagram shows the analog input module TSX AEY 1614 :
NOTE: The TELEFAST 2 accessory referenced ABE-7CPA12 facilitates connection and provides an integrated cold junction compensation device.
