The TSX AEY 414 module is a multi-range acquisition device with four inputs isolated from each other. This module offers the following ranges for each of its inputs according to the selection made at configuration :
-
thermocouple B, E, J, K, L, N, R, S, T, U or electrical range -13..63 mV,
-
thermowell Pt100, Pt1000, Ni1000 in 2- or 4-wire or ohmic range: 0..400 Ohms and 0..3850 Ohms,
-
high level +/- 10 V, 0..10 V, +/- 5 V, 0..5 V (0..20 mA with external shunt), or 1..5 V (4..20 mA with external shunt). It should be noted that the external shunts are supplied with the product.

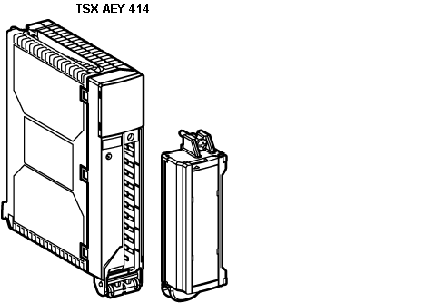

The following diagram shows the analog input module TSX AEY 414 :
NOTE: The terminal block is supplied separately under the reference TSX BLY 01.
