Detailed Characteristics of TSX AEY 414 Module Inputs
(Original Document)
About us
At a Glance
The TSX AEY 414 module proposes 23 ranges for each of its inputs, which can be configured channel by channel.
Precision

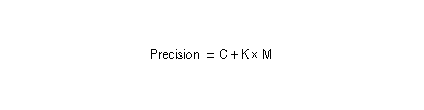

Precision for each input is shown by the formula:
Equation parameters:
Parameter
Meaning
C
Constant for the range in question
K
Coefficient of proportionality
M
Absolute value of the measurement
A measurement error is therefore made up of a constant value C and a value proportional to the measurement K, which can be different depending on measurement polarity.
For thermocouple ranges, measurement error also takes into account cold junction compensation and linearization errors, and for current ranges, external resistance error (shunt).
Diaphony
Diaphony is expressed in dB and is shown in the formula:
Equation parameters:
Parameter
Meaning
V M
Full scale voltage in the least sensitive range
V m
Voltage error on the following channel, configured in the most sensitive range (due to the presence of VM)
In the example, VM equals +10 V and Vm is the error due to the presence of +10 V on the following channel configured in +/- 20 mV.
Common Mode Rejection

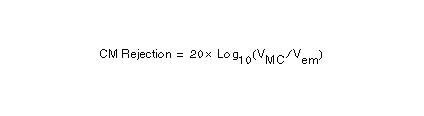

Common mode rejection between channel and ground is expressed in dB and is shown in the formula:
Equation parameters:
Parameter
Meaning
V MC
Common mode voltage expressed in VDC or VAC (50 / 60 Hz)
V em
Voltage error on the measurement (reduced by the conversion resolution) expressed in VDC
For a current range, common mode rejection can naturally be deduced from this formula.
For thermoprobe or thermocouple ranges, common mode rejection is not applicable.
Series Mode Rejection at 50 / 60 Hz
Series mode rejection at 50 / 60 Hz is expressed in dB and is shown in the formula:
Equation parameters:
Parameter
Meaning
V MS
Series mode voltage expressed in peak to peak volts
V em
Voltage error on the measurement (reduced by the conversion resolution) expressed in VDC
For a current range, series mode rejection can naturally be deduced from this formula.
For thermoprobe or thermocouple ranges, series mode rejection is not applicable.
Characteristics of the +/- 10 V Range
The following table presents the characteristics of the +/- 10 V range:
Full scale (FS)
10 V
Conversion resolution
0.570 mV
View resolution
1 mV
0.01 % of FS
Maximum error at 25°C
  • For the 0..10 V range
  • For the -10..0 V range
+ 2 mV + 0.0014 x M
-2 mV +0.0025 x M
0.27 % of FS
Maximum error from 0 to 60°C
0.50 % of FS
Input dynamic
+/-10 V
+/- 10000
Range overrun
+/-10.5 V
+/- 10500
CM rejection channel / ground
  • with VDC voltage
  • with VAC 50 / 60 Hz voltage
95 dB
105 dB
SM rejection at 50 / 60 Hz
35 dB
Characteristics of the 0..10 V Range
The following table presents the characteristics of the 0..10 V range:
Full scale (FS)
10 V
Conversion resolution
0.570 mV
View resolution
1 mV
0.01 % of FS
Maximum error at 25°C
+ 2 mV + 0.0014 x M
0.16 % of FS
Maximum error from 0 to 60°C
0.39 % of FS
Input dynamic
0..10 V
0..10000
Range overrun
-0.5..10.5 V
-500..10500
CM rejection channel / ground
  • with VDC voltage
  • with VAC 50 / 60 Hz voltage
95 dB
105 dB
SM rejection at 50 / 60 Hz
35 dB
An error at a given temperature T can be deduced by linear extrapolation of the errors defined at 25 and 60°C according to the formula:
Characteristics of the +/- 5 V Range
The following table presents the characteristics of the +/- 5 V range:
Full scale (FS)
5 V
Conversion resolution
0.570 mV
View resolution
0.5 mV
0.01 % of FS
Maximum error at 25°C
  • For the 0..5 V range
  • For the -5..0 V range
+1.5 mV +0.0019 x M
-1.5 mV +0.0024 x M
0.27 % of FS
Maximum error from 0 to 60°C
0.50 % of FS
Input dynamic
+/- 5 V
+/- 10000
Range overrun
+/-5.25 V
+/- 10500
CM rejection channel / ground
  • with VDC voltage
  • with VAC 50 / 60 Hz voltage
100 dB
110 dB
SM rejection at 50 / 60 Hz
35 dB
Characteristics of the 0.. 5 V Range
The following table presents the characteristics of the 0..5 V range:
Full scale (FS)
5 V
Conversion resolution
0.570 mV
View resolution
0.5 mV
0.01 % of FS
Maximum error at 25°C
+1.5 mV +0.0019 x M
0.22 % of FS
Maximum error from 0 to 60°C
0.45 % of FS
Input dynamic
0..5 V
0..10000
Range overrun
-0.25..5.25 V
-500..10500
CM rejection channel / ground
  • with VDC voltage
  • with VAC 50 / 60 Hz voltage
100 dB
110 dB
SM rejection at 50 / 60 Hz
35 dB
An error at a given temperature T can be deduced by linear extrapolation of the errors defined at 25 and 60°C according to the formula:
Characteristics of the 1.. 5 V Range
The following table presents the characteristics of the 1..5 V range:
Scale range (FSR)
4 V
Conversion resolution
0.570 mV
View resolution
0.4 mV
0.01 % of FSR
Maximum error at 25°C
+3.2 mV +0.0019 x M
0.27 % of FSR
Maximum error from 0 to 60°C
0.56 % of FSR
Input dynamic
1..5 V
0..10000
Range overrun
0.8..5.2 V
-500..10500
CM rejection channel / ground
  • with VDC voltage
  • with VAC 50 / 60 Hz voltage
100 dB
110 dB
SM rejection at 50 / 60 Hz
35 dB
Characteristics of the 0.. 20 mA Range
The following table presents the characteristics of the 0..20 mA range:
Full scale (FS)
20 mA
Conversion resolution
2.28 microA
View resolution
0.002 mA
0.01 % of FS
Maximum error at 25°C
+ 0.006 mA + 0.0033 x M
0.36 % of FS
Maximum error from 0 to 60°C
0.69 % of FS
Input dynamic
0..20 mA
0..10000
Range overrun
-1..21 mA
-500..10500
CM rejection channel / ground
  • with VDC voltage
  • with VAC 50 / 60 Hz voltage
100 dB
110 dB
SM rejection at 50 / 60 Hz
35 dB
An error at a given temperature T can be deduced by linear extrapolation of the errors defined at 25 and 60°C according to the formula:
The value includes the shunt (250 Ω - 0.1% - 25 ppm/°C). Influence of the shunt on precision can be reduced by using a more precise resistance (0.01% - 10 ppm/°C).
Characteristics of the 4.. 20 mA Range
The following table presents the characteristics of the 4..20 mA range:
Scale range (FSR)
16 mA
Conversion resolution
2.28 microA
View resolution
1.6 microA
0.01 % of FSR
Maximum error at 25°C
+0.0192 mA + 0.0033 x M
0.45 % of FSR
Maximum error from 0 to 60°C
0.86 % of FSR
Input dynamic
4..20 mA
0..10000
Range overrun
3.2..20.8 mA
-500..10500
CM rejection channel / ground
  • with VDC voltage
  • with VAC 50 / 60 Hz voltage
100 dB
110 dB
SM rejection at 50 / 60 Hz
35 dB
Characteristics of the -13..63 mV Range
The following table presents the characteristics of the -13..63 mA range:
Range
-13...63V
Full scale (FS)
63 mV
Conversion resolution
0.00202 mV
View resolution
0.0063 mV
0.01 % of FS
Maximum error at 25°C
  • For the 0..63 mV range
  • For the -13..0 mV range
+0.018 mV +0.001581 x M
-0.018 mV +0.004581 x M
0.19 % of FS
Maximum error from 0 to 60°C
0.45 % of FS
Input dynamic
-13..63 mV
-2064..10000
Range overrun
-13..63 mV
-2064..10000
CM rejection channel / ground
  • with VDC voltage
  • with VAC 50 / 60 Hz voltage
> 140 dB
> 150 dB
SM rejection at 50 / 60 Hz
> 35 dB
An error at a given temperature T can be deduced by linear extrapolation of the errors defined at 25 and 60°C according to the formula:
Characteristics of the 0..400 Ohms Range
The following table presents the characteristics of the 0..400 Ohms range:
Full scale (FS)
400 Ohms
Conversion resolution
31 mOhms
View resolution
40 mOhms (1)
0.01 % of FS
Maximum error at 25°C
63 mOhms + 0.001180 x M
0.13 % of FS
Maximum error from 0 to 60°C
0.27 % of FS
Input dynamic
0..400 Ohms
0..10000
Range overrun
0..400 Ohms
0..10000
CM rejection channel / ground
  • with VDC voltage
  • with VAC 50 / 60 Hz voltage
> 110 dB
> 120 dB
SM rejection at 50 / 60 Hz
> 35 dB
Characteristics of the 0..3,850 Ohms Range
The following table presents the characteristics of the 0..3,850 Ohms range:
Full scale (FS)
3,850 Ohms
Conversion resolution
139 mOhms
View resolution
385 mOhms (1)
0.01 % of FS
Maximum error at 25°C
2.114 mOhms +0.001647 x M
0.22 % of FS
Maximum error from 0 to 60°C
0.48 % of FS
Input dynamic
0..3850 Ohms
0..10000
Range overrun
0..3850 Ohms
0..10000
CM rejection channel / ground
  • with VDC voltage
  • with VAC 50 / 60 Hz voltage
> 110 dB
> 120 dB
SM rejection at 50 / 60 Hz
> 35 dB
An error at a given temperature T can be deduced by linear extrapolation of the errors defined at 25 and 60°C according to the formula:
(1) Redefine the terminals with the User scale to obtain the converter resolution.
