Labeling Analog Modules

At a Glance

Modules are labeled with marks on the front cover and on the right-hand side of the module.

Illustration

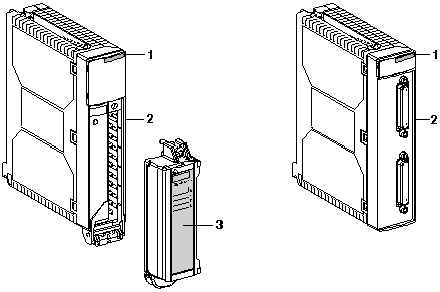

The following diagram shows the different elements for labeling analog modules :

Elements

The following table describes the different labels on analog modules:

Number	Description
1	Badge engraved with the module reference.
2	Mark showing the module reference and type.
3	Terminal block label. This label is positioned inside the panel, and repeats the reference and type of the module which provides terminal block cabling. It can be supplemented with user information on the front and back.

Terminal block label

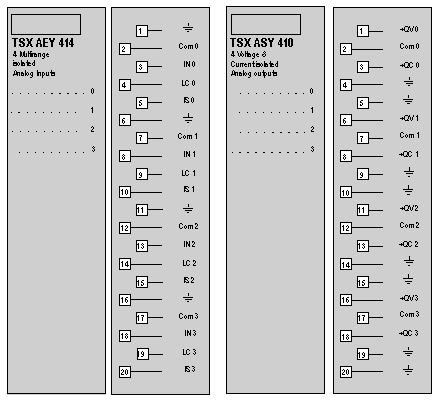

The following diagram shows the different labels of the screw terminal block analog modules TSX AEY 414 and TSX ASY 410 :
