Dimensions of X80 Discrete I/O Modules
Original instructions
About us
General Presentation of X80 Discrete I/O Modules
X80 Discrete I/O Module with a 20-pin removable terminal block
a
DIN-rail depth: the value depends on the DIN-rail type used in your platform.

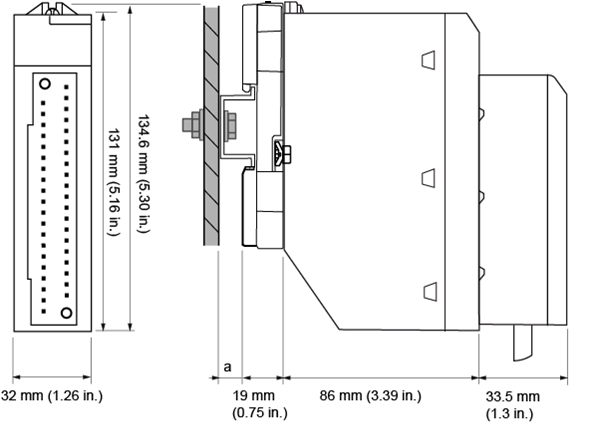

X80 Discrete I/O Module with a 40-pin removable terminal block
a
DIN-rail depth: the value depends on the DIN-rail type used in your platform. Refer to Mounting the Racks.

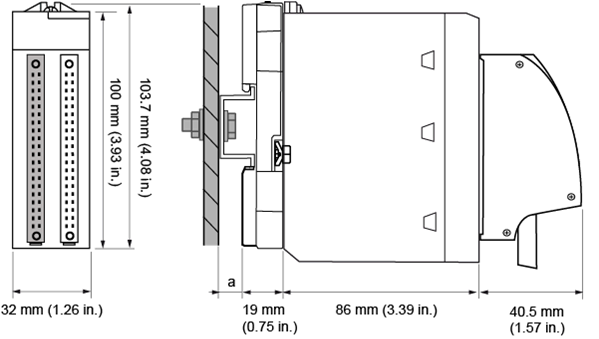

X80 Discrete I/O Module with 40-pin FCN-type connectors
a
DIN-rail depth: the value depends on the DIN-rail type used in your platform.
Dimensions of X80 Discrete Modules
Module reference
Module dimension
Installation depth(1)
Width
Height
Module alone
X80 Discrete I/O Modules with a 20-pin removable terminal block
BMXDDI1602(H)
32 mm (1.26 in.)
103.7 mm (4.08 in.)
86 mm (3.39 in.)
119.5 mm (4.69 in.)(1)
BMXDDI1603(H)
BMXDDI1604(T)
BMXDAI1602(H)
BMXDAI1603(H)
BMXDAI1604(H)
BMXDAI0805(H)
BMXDAI0814
BMXDDO1602(H)
BMXDDO1612(H)
BMXDRA0804(T)
BMXDRA0805(H)
BMXDRA0815(H)
BMXDRA1605(H)
BMXDAO1605(H)
BMXDDM1622(H)
BMXDDM1625(H)
X80 Discrete I/O Modules with a 40-pin removable terminal block
BMXDAI1614(H)
32 mm (1.26 in.)
134.6 mm (5.30 in.)
86 mm (3.39 in.)
119.5 mm (4.69 in.)(1)
BMXDAI1615(H)
BMXDRC0805(H)
BMXDAO1615(H)
X80 Discrete I/O Modules with 1 or 2 40-pin FCN-type connectors
BMXDDI3202(K)
32 mm (1.26 in.)
103.7 mm (4.08 in.)
86 mm (3.39 in.)
126.5 mm (4.96 in.)(1)
BMXDDI3202(KH)
BMXDDO3202(K)
BMXDDO3202(KC)
BMXDDM3202(K)
BMXDDI6402(K)
BMXDDI6402(KH)
BMXDDO6402(K)
BMXDDO6402(KC)

(1)
DIN-rail depth (a) is not included.
NOTE: Connectors that are delivered with the X80 Discrete I/O modules (20-pin and 40-pin removable terminal blocks) and the corresponding pre-assembled cordsets (BMXFTW**1 and BMXFTW**5) have the same dimensions.
NOTE: Consider clearance for cable installation and spacing around the racks.
