Managing Changes in System Projects and Control Projects

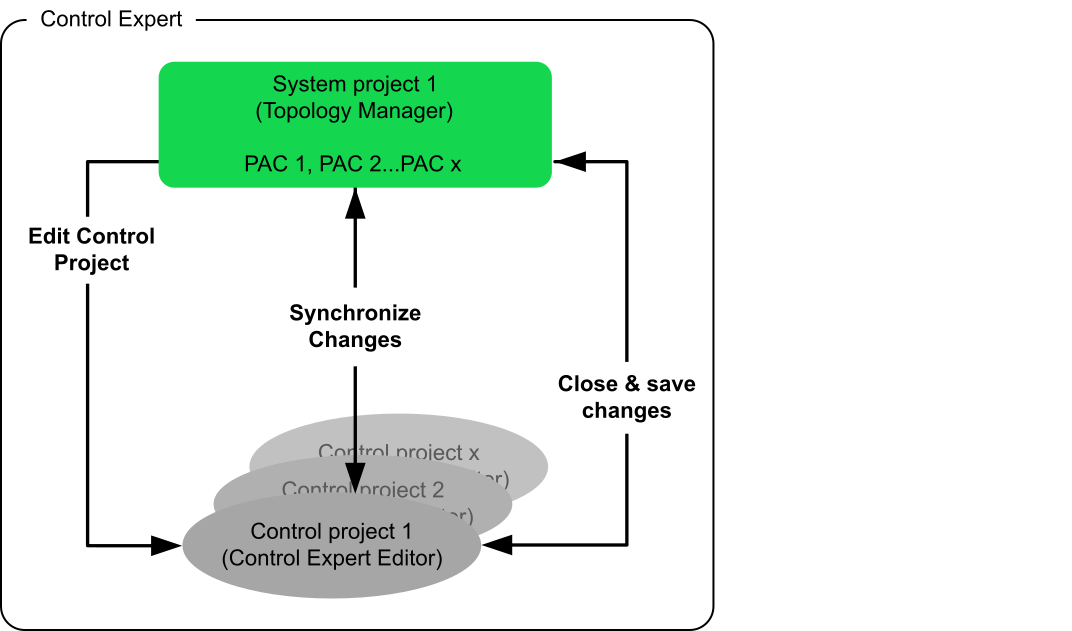

The following figure illustrates how the software propagates changes that you perform on an M580 PAC and its dependencies (for example, scanned devices) in the system project and/or in its control project depending on the command that you use.
System projects and control projects are stored in the Control Expert repository of the system server.
NOTE: When you synchronize changes or close the
control project and save changes, only data pertaining to objects
that are managed by the Topology Manager is propagated to the system project. For example, the PAC configuration but not the program.
