In general, Ethernet is designed to facilitate:
-
coordination between programmable controllers
-
local or centralized supervision
-
communication with the business data processing of production
-
communication with remote inputs/outputs

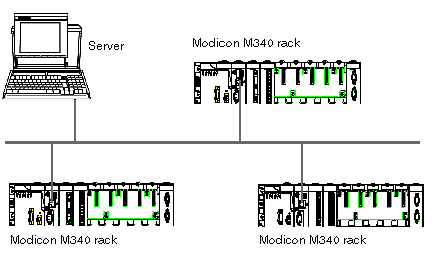

An Ethernet network:
NOTE: Be careful routing the Ethernet cable through the factory as the cable may be damaged by other equipment within the factory.
