Introduction

Refer to the LED indicators to monitor the status and performance of these items:

Module LED Descriptions

The module LED indicators are located on the front of the BMENOR2200H module. The LEDs provide information on:

  • module status (run, error, downloading)

  • Ethernet network communications

  • SD memory card state

  • serial communications

  • cyber security rotary switch position

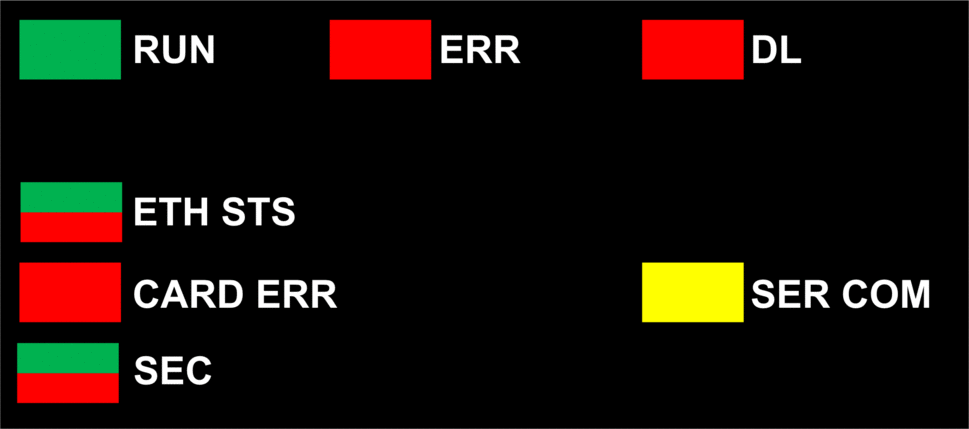

This is the LED display on the front of the BMENOR2200H module:

The LEDs can be in these states:

  • on: steady on

  • off: steady off

  • flashing: alternate (50 ms on, 50 ms off)

The module status is indicated by the color and state of the LEDs:

Label

Color

Pattern

Indication

RUN: operational state

green

on

The module is operating and configured.

flashing

The module is blocked by a detected software error.

off

The module is not configured. (The application is absent, invalid, or incompatible.)

ERR: detected error

red

on

  • The processor, system, or configuration detected an error.

  • If you move the rotary switch from Standard > Advanced (or vice versa) directly instead of moving to Cybersecurity Reset in between, an error is detected.

flashing

  • The module is not configured. (The application is absent, invalid, or incompatible.)

  • The module is blocked by a detected software error.

  • A Hot Standby problem is detected.

off

Operations are normal (no detected errors).

DL: download firmware (upgrade)

red

on

A firmware upgrade or factory reset is in progress.

off

A firmware upgrade or factory reset is not in progress.

SER COM: serial data status

yellow

flashing

A data exchange (send/receive) is in progress on the serial connection.

off

There is no data exchange on the serial connection.

CARD ERR: memory card detected error

red

on

  • The data logging service is enabled, but the memory card is missing.

  • The data logging service is enabled, but the memory card is not usable (for example, bad format, unrecognized type, etc.).

off

The memory card is valid and recognized.

ETH STS: Ethernet communication status

—

off

There is no link on the Ethernet backplane port.

green

on

At least one RTU connection (client or server) established in the module.

flashing

The module has an IP address, but there is no RTU connection.

red

on

The module has a duplicate IP address or factory reset mode.

SEC: Communication security status

green

on

The selected communication security level is enabled and running fine.

red

on

  • Communications are not secure because a critical error in communication security is detected. For example, there is no available security configuration, or the certificate expired when the communications stopped.

  • No channel security is configured through the channel name for either client or server.

flashing

The selected communication security level is enabled and running, but a critical error is detected. For example, there is no available security configuration, or the certificate expired when the communications stopped.

—

off

The cybersecurity function is not enabled.

Typical Status and Related LED Behavior

Label

Pattern

Indication

ERR

Red on

standard secure: The rotary switch was moved directly between Standard mode and Advanced mode. A factory reset is required.

DL

ETH STS

SEC

Module status

LED

Description

Factory mode

RUN: green on

DL: red on

DL: red off

Factory reset is ongoing.

Factory reset is complete.

ETH STS: red on

Secure mode (initial indication at first-time start-up)

ERR: red flashing

Module is not running; a validated cybersecure setting is required.

ETH STS: green flashing

SEC: red on
