NOP850_EVTS Elementary Function Block Operations for the BMENOP0300
Original instructions
About us
Introduction
Use the NOP085_EVTS elementary function block (EFB) to:
Representation in FBD
NOTE:
  • When the timestamped event originates at a Quantum platform, the time stamp is local time (UTC+TimeZone). The BMENOP0300 firmware converts this local time into UTC and includes it in the outgoing report control block. The time zone depends on the BMENOP0300 SNTP configuration in Modicon IEC61850 Configuration Tool.
  • When the timestamped event originates at an M80 platform, the time stamp is UTC time and BMENOP0300 firmware includes it in the outgoing report control block without conversion.
Input Parameters
Input parameter
Type
Description
ENABLE
BOOL
Start transferring
ERT
BYTE
ERT type:
  • 0 = Quantum ERT
  • 1 = Mx80 ERT
EVT
One of the following:
Event description, including value, quality, time stamp, ID, DDT, and IED_EVT_x
RPT
IED RPT
Report information. DDT IED_RPT
TIMEOUT
INT
Time threshold in 100 ms increments for triggering an event (a value greater than 0)
Output Parameters
Output parameter
Type
Description
DONE
BOOL
A value of 1 (true) indicates the function block completed successfully.
ACTIVE
BOOL
A value of 1 (true) indicates execution of the function block is in progress.
ERROR
BOOL
A value of 1 (true) indicates the function block detects an execution error.
STATUS
INT
Identifies the detected error:
  • 1 = Input parameter is not valid.
  • 2 = <Reserved>
  • 3 = Time format is not valid.
    NOTE: Only dates after January 01, 2000 are valid.
  • 4 = time out occurrence (default 10 s)
  • 5 = parameter change during runtime
  • 6 = Data change counter of report is abnormal
    NOTE: This EFB restarts if a time out (4) or abnormal data change counter event (6) occurs.
RPT_BUFF
IED ERT BUF
Raw buffer containing event time stamp entities.

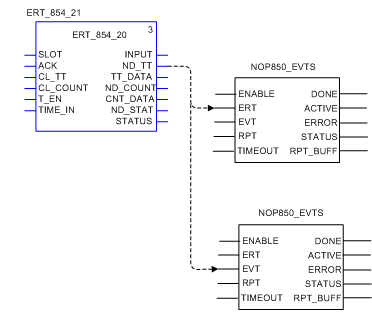

Quantum ERT FBD Example

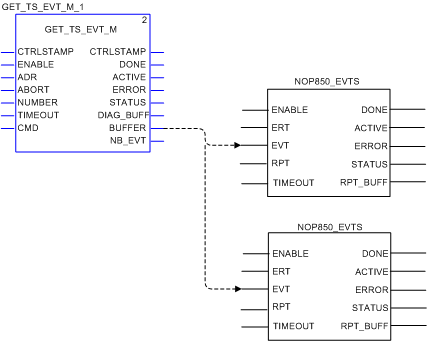

Mx80 ERT FBD Example
