Declaring the ATV 32 Slave
|
|
|
(Original Document)
|
|
Step
|
Action
|
|---|---|
|
1
|
Select the Insert → Node... command.
Result: A cursor is displayed.
|
|
2
|
Place the cursor on the bus outside the master frame and click once.

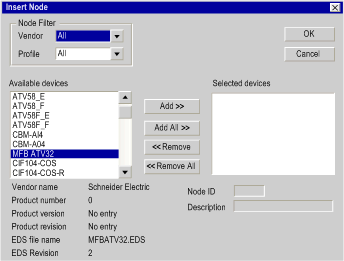

Result: the following screen is displayed:
 |
|
3
|
Select MFB_ATV32 in the list of available devices.
|
|
4
|
Click on the Add button to insert MFB_ATV32 into the selected devices list.
The Node_ID must be set to 4 and the Description set to Node4
Click OK.

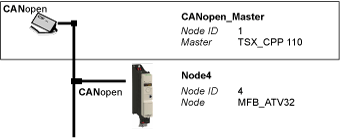

Result: the following architecture is displayed:
 |
