Configuration of the Lexium 15 LP Node

Configuring the Node

The following table describes the steps to configure a node, using Node 3 as an example for the Lexium 15 LP.

Step	Action

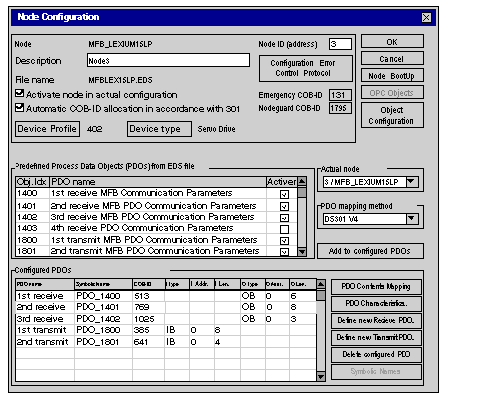

1	In the main screen, double-click on Node 3. Result: the node configuration screen is displayed:
2	Click OK to confirm node configuration.
3	Save the CANopen project with the name MFB_Lexium15LP.co. Note: remember where the .CO file is saved since the configuration will be imported in Control Expert.

PDO and Configuration Object

The following table describes the PDOs and configuration objects to add for the Lexium 15 LP:

Type of servodrive	Name given to node	Name of .eds file	PDOs to add	Configuration object to add
Lexium 15 LP	MFB_LEXIUM15LP	MFBLEX15LP.eds	1st receive PDO 2nd receive PDO 3rd receive PDO 1st transmit PDO 2nd transmit PDO
