Declaring the Lexium 15 Slave
(Original Document)
About us
Declaring the Lexium 15 MH
The following table describes the steps to declare the slave in SyCon.
Step
Action
1
Select the Insert → Node... command.
Result: a cursor displays:
2
Place the cursor on the bus outside the master frame and click once.
Result: the following screen is displayed:
3
Select MFB_LEXIUM15MH in the list of available devices.
4
Click on the Add button to insert Node1 into the selected devices list. Click OK.

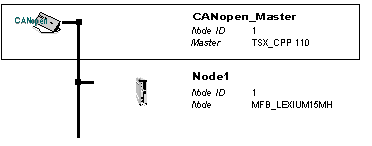

Result: the following architecture is displayed:
Declaring the Lexium 15 LP
The following table describes the steps to declare the slave in SyCon.
Step
Action
1
Select the Insert → Node... command.
Result: a cursor displays:
2
Place the cursor on the bus outside the master frame and click once.

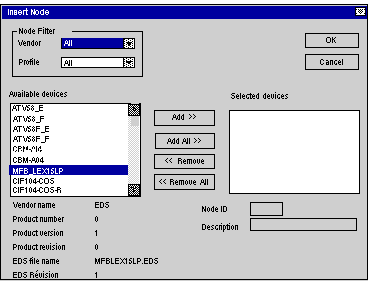

Result: the following screen is displayed:
3
Select MFB_LEXIUM15LP in the list of available devices.
4
Click on the Add button to insert Node3 into the selected devices list. Click OK.

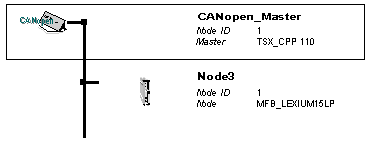

Result: the following architecture is displayed:
