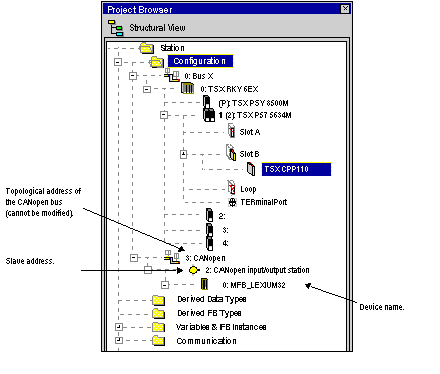

When you declare a TSX CPP 110 card in a PLC processor, the CANopen bus is represented in the Configuration directory of the project browser.

The topological address of the CANopen bus is calculated automatically by Control Expert. This value cannot be modified.

After having selected and enabled the CANopen configuration (the MFB_Lexium32.CO file created with the Sycon software), the CANopen slaves appear in the Project Browser.

Displaying the CANopen bus allows you to check the topological addressing of the slaves.
