Tuning the IclA with IclA Easy
(Original Document)
About us
In Advance
We recommend tuning the axis kinematic before the program automatically starts it.
Tuning Example
The following table gives an example of kinematic tuning:
Step
Action
1
Connect to the IclA.
2
The following figure shows part of the new window. This lower window provides access to IclA command functions:
3
Click the Reset button to clear any problems.
4
Place the Enable zone cursor on ON.
5
Choose the command Functions → Operating modes.
Result: Operating modes windows is displayed.
6
Choose the Speed mode tab
Enter the value 200 in the Setpoint value zone.

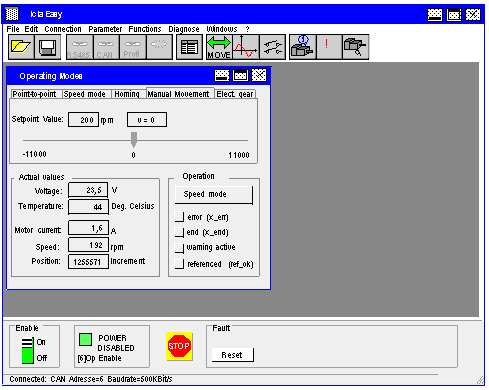

Result: the motor runs and the sub-window is animated:
7
Place the Enable zone cursor on OFF once tuning has been finalized.
