Configuring the Lexium 05 in PowerSuite
(Original Document)
About us
Overview
With PowerSuite, users can define installed device bases, and describe their associated configurations and communication settings.
PowerSuite then gives access to a group of actions for editing or transferring the configurations and for connecting to the devices.
PowerSuite’s navigation principle associates a configuration interface with each device type, making it possible to control, tune and monitor them.
NOTE: The required signals, i.e LIMN, LIMP, REF must be wired or deactived by the tuning software.
Connecting to the Lexium 05
This table describes the procedure for connecting to the Lexium 05:
Step
Action
1
Connect your PC, on which PowerSuite for Lexium 05 is installed, to the RJ45 connector on the servodrive to be configured.
2
Start PowerSuite for Lexium 05,

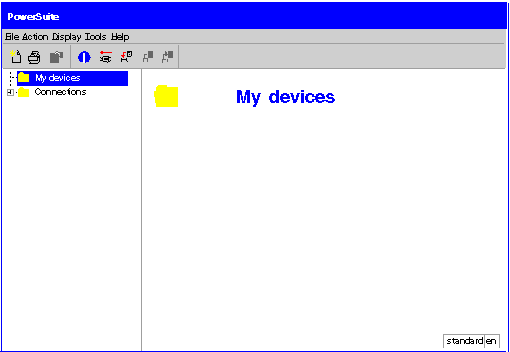

Result: the following start-up screen is displayed:
3
Choose Action and then Connect.
Result: a text box is displayed.
4
Type a project name (Lexium05_MFB) and then click on OK.
Result: a transfer confirmation window is displayed.
5
Press Alt F to start transferring data from the servodrive to the connected work station.
Basic Lexium 05 Configuration
This table describes the procedure for entering basic settings:
Step
Action
1
Following a connection and transfer of the device’s configurations, PowerSuite displays a configuration screen in a new window that gives access to device control, tuning and monitoring functions.
In the tree structure displayed, choose CANopen in the Communication directory.

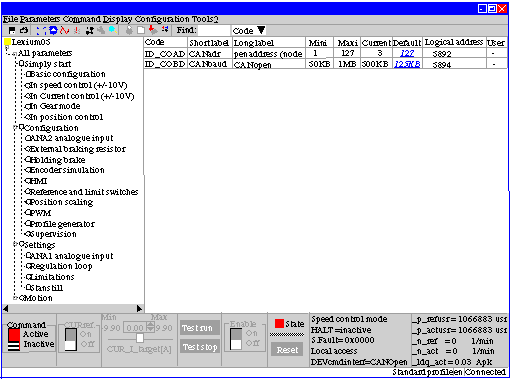

Result: the following window is displayed:
2
Double-click on the value in the ID_COAD line, Current Value column, and type the Lexium 05 CANopen address.
3
Double-click on the value in the ID_COBD line, Current Value column and choose the CANopen bus baud rate.
4
Save the CANopen settings to EEprom with the command Configuration → Save to EEprom.
Note: it is possible to adjust the servodrive’s settings with the same procedure.
5
Once the settings have been adjusted, use the command Configuration → Disconnect to disconnect.

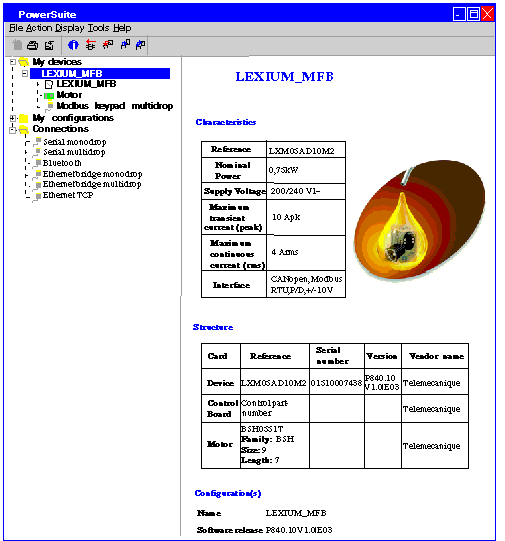

Result: the following screen is displayed, showing the data saved locally:
6
The Lexium 05 must be turned off and then turned back on in order to apply the new settings.
