The configuration section is used to configure the analog input and output modules and controls data exchange between the analog EFBs, the State Ram and the configuration data.
The configuration section should be called CfgErt and the internal variable which controls it should be called CfgErtDone to guarantee the compatibility to future Control Expert versions.
There are 2 possibilities for the control of the configuration sections:
Controlling the Configuration Section
Control of the configuration section is possible through the EN inputs of this section’s individual EFBs. The EFBs are enabled through the SYSSTATE EFB which has COLD or WARM outputs that are set to 1 for one cycle after either a cold or a warmstart.

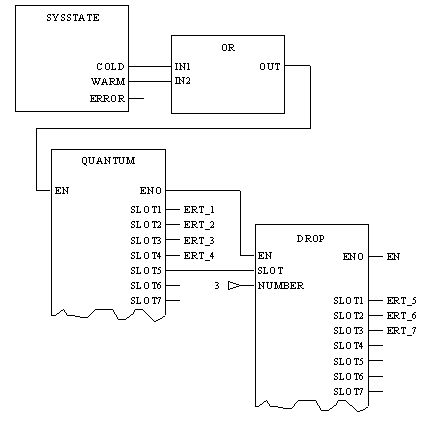

Example of a CfgErt configuration section
