Overview

Introduction

The 140 ERT 854 10 is a Quantum Expert Module with 32 binary inputs (24 ... 125 VDC). The module is suitable for the evaluation of digital inputs, counter pulses and events.

Front View of the Module

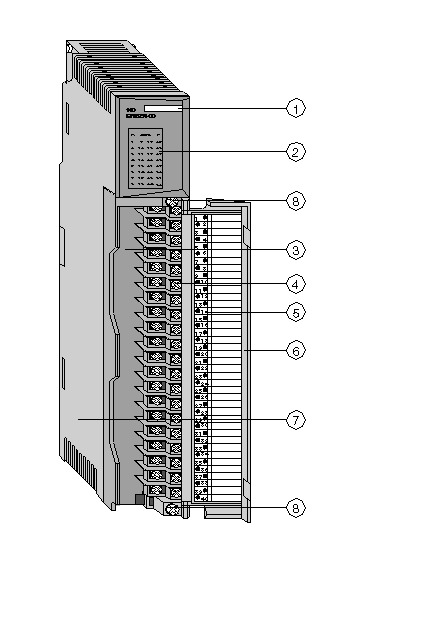

Front View of the ERT 854 10

Location of Operating Elements

Color Code

Display field (LEDs)

Terminal Block

Connection terminals

Sliding Label (inside)

Cover for the terminal blocks

Standard housing

Screws for terminal block

NOTE: The tightening torque must be between 0.5 Nm and 0.8 Nm.

NOTICE

DESTRUCTION OF ADAPTER

Before tightening the locknut to the torque 0.50...0.80 Nm, be sure to properly position the right-angle F adapter connector.
During tightening, be sure to maintain the connector securely.
Do not tighten the right-angle F adapter beyond the specified torque.

Failure to follow these instructions can result in equipment damage.
