Introduction
The BMXNOR0200H module supports upward compatibility from V1.0 to V1.5. RTU V1.5 has upwards compatibility including firmware and configuration files. All features from previous versions are supported by V1.7.
Event Backup Compatibility
Firmware and hardware supporting event backup:
Product Version
Firmware Version
PV03, PV07 or later
V1.5 or later
NOTE: If you are using PV03 hardware, the user interface allows you to set event backup parameters, but they are not applied if a loss of power occurs. A message appears on the configuration page indicating that the event backup feature is not supported by PV01, PV02, PV05, and PV06. Check your hardware version if you need this feature.

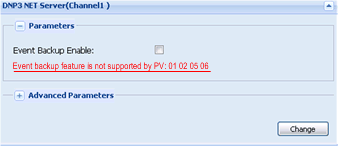

Screen of event backup:
Firmware and Hardware Compatibility
NOTICE
UNEXPECTED EQUIPMENT BEHAVIOR
Do not load firmware V1.0 or V1.5 in a BMXNOR0200H with PV09 or later.
Failure to follow these instructions can result in equipment damage.
Firmware and hardware compatibility table:
Product Version
Firmware Version
PV01...PV08
V1.0 or V1.5
All
V1.6 or later
Website Configuration Files Compatibility
